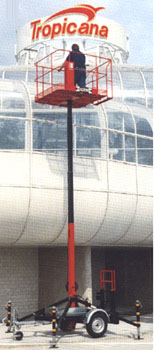

 HYDRAULIC
TYPE ( Model: TEC )
SYSTEM DESCRIPTION
This equipment is designed to lift a single
person with his tools upto height of 6,8 & 10
mts. Lifting will be through a telescopic
hydraulic cylinder actuated by power pack AC
driven with, 15 mts input cable. The whole
equipment can be towed by any vehicle. Usage of
foldable Jacks are mandatory. The control
pendent is provided on the platform & the main
controls are on the trolley.
TECHNICAL SPECIFICATIONS
Capacity : 150 kgs.
Platform size : 600 x 800 mm
Lift / Reach : 6 / 8, 8 / 10, & 10 / 12 mts.
Type of lifting : Hydraulic motorized
Lifting speed : 4 – 6 mts/min.
Motor capacity : 2 HP, AC, 1Ph / 3Ph
more

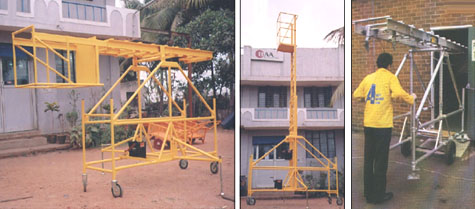

SLEEK TYPE ( Model: SLK )
SYSTEM DESCRIPTION
This equipment is designed to lift a single
person with his tools upto 4.4, 5.9 & 7.5 mts
high. Lifting will bethrough manual rope winch.
Mechanical locks are provided for safety. The
whole equipment can be pushed / pulled manually
or can be towed by any driven vehicle.
Usage of foldable jacks are mandatory.
TECHNICAL SPECIFICATIONS
Capacity : 100 kgs.
Platform size : 400 x 600 mm
Lift / Reach : 4.4 / 6.4 mts
5.9 / 7.9 mts.
7.5 / 9.5 mts.
Type of lifting : Manual rope winch
Lifting speed : 2 - 3 mts/min.

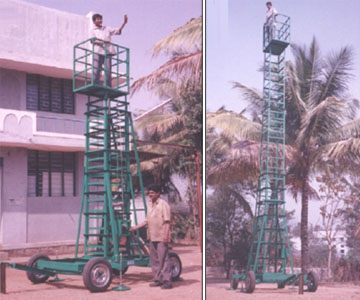

BOX TYPE ( Model: BOX )
SYSTEM DESCRIPTION
This equipment is designed to lift a single
person with his tools upto 6,8 & 10 mts high.
Lifting will be through manual rope winch.
Mechanical locks are provided for safety. The
whole equipment can be pushed / pulled manually
or can be towed by any driven vehicle. Usage of
foldable jacks are mandatory.
TECHNICAL SPECIFICATIONS
Capacity : 100 kgs.
Platform size : 400 x 600 mm
Lift / Reach : 6 / 8, 8 / 10, & 10 / 12 mts.
Type of lifting : Manual rope winch
Lifting speed : 2 – 3 mts/min. |
