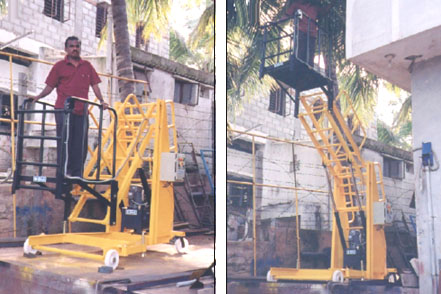

WELDER’S PLATFORM TYPE ( Model: WED )
SYSTEM DESCRIPTION
This equipment, designed for
welding/assembly/maintenance purposes can lift
up to 3, 4, & 5 mts, accommodating two people
along with their tools. Lifting will be through
hydraulic twin cylinders actuated by a motorized
hydraulic power pack. Manual valve is provided
to lower the platform in case of power failure.
The whole equipment can be pushed / pulled
manually. Usage of foldable jacks are mandatory.
TECHNICAL SPECIFICATIONS
Capacity : 250 kgs.
Platform size : 600 x 900 mm
Additional ladder : Sliding type
Lift / Reach : 3 / 5 mts
4 / 6 mts.
5 / 7 mts.
Type of lifting : Motorized power pack
Lifting speed : 4 - 6 mts/min.
WINCH TYPE ( Model: WIN )
SYSTEM DESCRIPTION
This equipment can lift a single person with his
tools up to 2, 3 & 4 mts high. Lifting will be
through manual rope winch. Mechanical locks are
provided for safety. The whole equipment can be
moved by a single person. Usage of foldable
jacks are mandatory.
TECHNICAL SPECIFICATIONS
Capacity : 100 kgs.
Platform size : 500 x 600 mm
Lift / Reach : 2 / 4 mts
3 / 5 mts.
4 / 6 mts.
Type of lifting : Manual rope winch
Lifting speed : 2 - 3 mts/min.

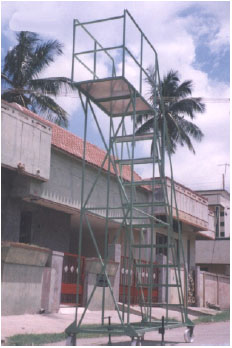

STEP LADDER TYPE ( Model: STP )
SYSTEM DESCRIPTION
This equipment can lift up to 2, 2.5 & 3mts
high. The platform accommodating a single person
with his tools is provided with staircase.. The
whole equipment can be pushed / pulled manually
. Usage of foldable jacks are mandatory.
TECHNICAL SPECIFICATIONS
Capacity : 80 kgs.
Platform size : 500 x 600 mm
Lift / Reach : 2.0 / 4.0 mts
2.5 / 4.5 mts.
3.0 / 5.0 mts.
Type of lift : Manual rope winch
Way of going up : Through steps. |
